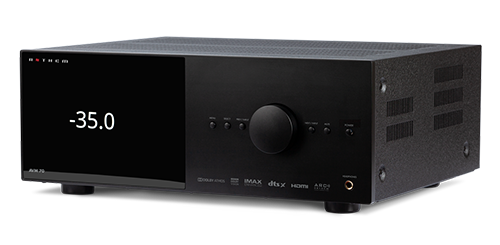

AVM 70 8K

$3,999.99 each USD

AVM 70 8K Specifications

PREAMPLIFIER (measured at XLR output)
Maximum Output (<0.01% THD)	10.7 VRMS, Subwoofer 11 VRMS
Frequency Response	20 Hz — 35 kHz (+/-0.2dB)
Frequency Response, Analog-Direct	20 Hz — 80 kHz (+0, -2 dB)
THD+N (4 Vrms output)	-100 dB
S/N Ratio (4 Vrms output, IEC-A filter)	110 dB
XLR Configuration	Pin 1: Ground, Pin 2: Positive, Pin 3: Negative
POWER CONSUMPTION
Typical Load	60 W
Standby	0.3 W
Standby IP Control Enabled	1.8 W
Standby HDMI Bypass Enabled	4.9 W
DIMENSIONS
Height (without feet)	6" (15.24 cm)
Height with Rackmount Kit	4U
Width	17" (43.18 cm)
Depth (including wifi ant not power cord)	14-1/2" (36.4 cm)
Weight	22.1 lbs, 10.1 Kg
POWER REQUIREMENT
120 V version:	In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version:	In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
